Node.js Workshop

Session 2 - 04/03/2016

http://bit.ly/nodejs-ws-2

What is NoSQL?

NoSQL encompasses a wide variety of different database technologies that were developed in response to the demands presented in building modern applications:

• Large volumes of rapidly changing structured, semi-structured, and unstructured data
• Agile sprints, quick schema iteration, and frequent code pushes
• Object-oriented programming that is easy to use and flexible
• Geographically distributed scale-out architecture instead of expensive, monolithic architecture

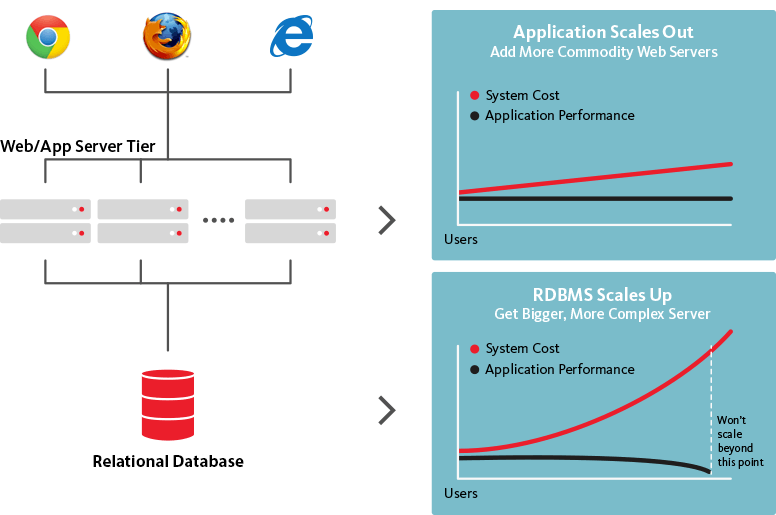

Scaling a Relational DB

To support more concurrent users and store more data, relational databases require a bigger and more expensive server with more CPUs, memory, and disk storage.

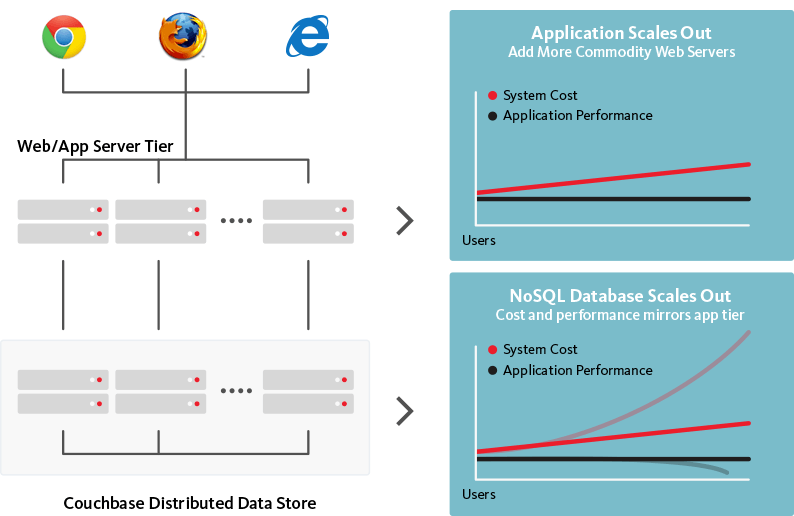

Scaling a NoSQL DB

As the number of concurrent users grows, simply add additional low-cost, commodity servers to your cluster.

Who uses NoSQL?

Some familiar names

• Hadoop big data, high scalability, Java.
• Elasticsearch document store, high performance indexing, Java.
• MongoDB document store, high scalability, C++.
• Redis key value store, Erlang.
• Neo4J graph database, JAVA.
• and so on...

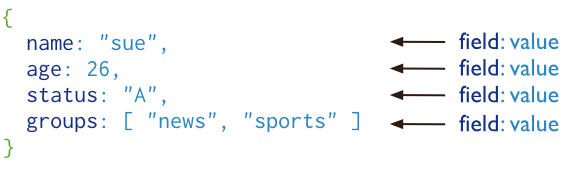

MongoDB: Documents

MongoDB stores data in the form of documents, which are JSON-like field and value pairs.

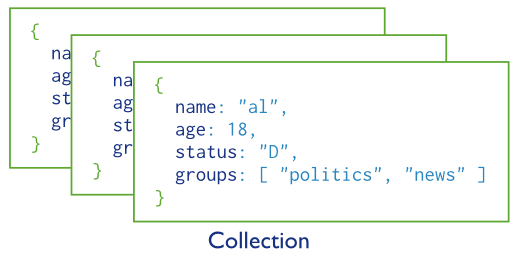

MongoDB: Collections

MongoDB stores all documents in collections.

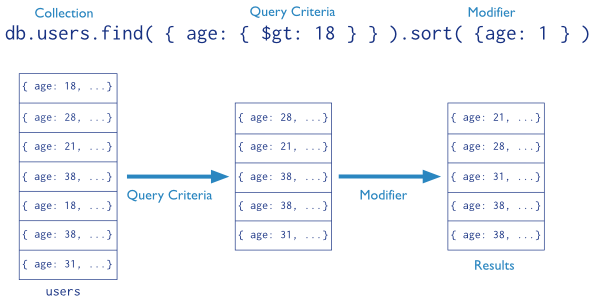

MongoDB: Read Query

In MongoDB a query targets a specific collection of documents. Queries specify criteria, or conditions, that identify the documents.

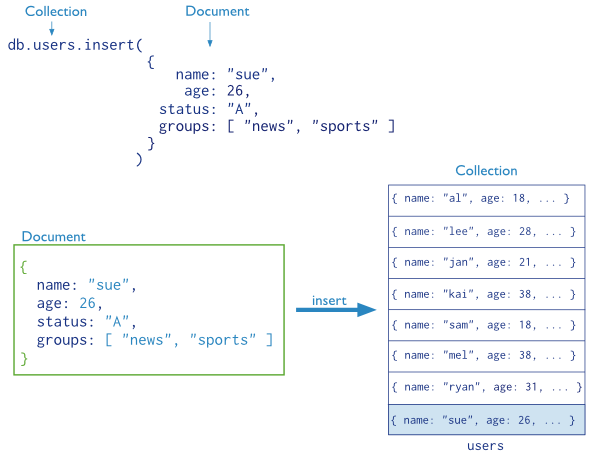

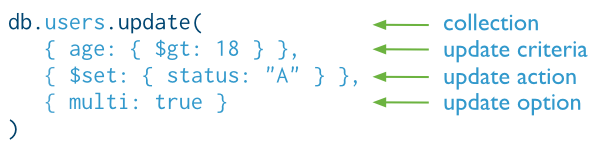

MongoDB: Data modification

Data modification refers to operations that create, update, or delete data. In MongoDB, these operations modify the data of a single collection.

MongoDB: Data modification

Data modification refers to operations that create, update, or delete data. In MongoDB, these operations modify the data of a single collection.

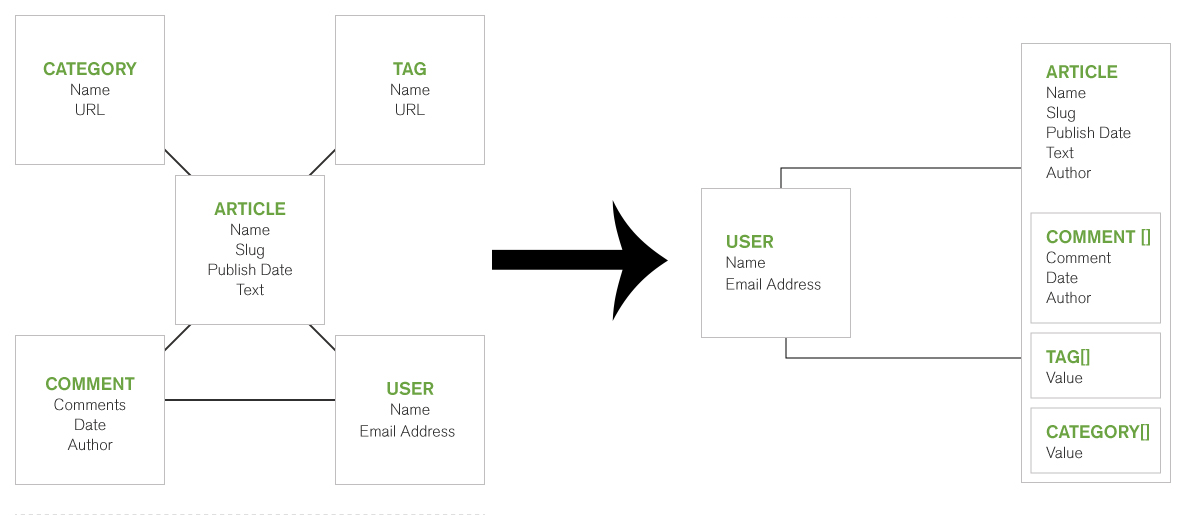

MongoDB: Schema creation

Wait, but what about releationships? Embed. Think about how you use your data.

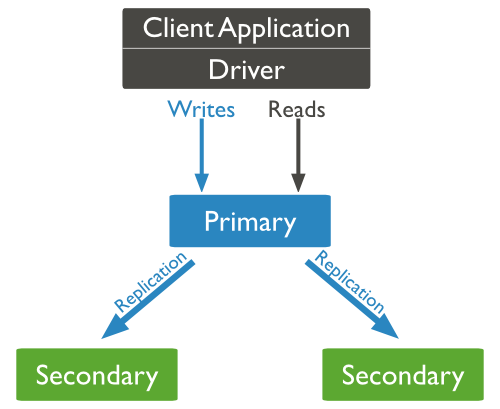

MongoDB scalability: Replication

A replica set is a group of mongod instances that maintain the same data set.

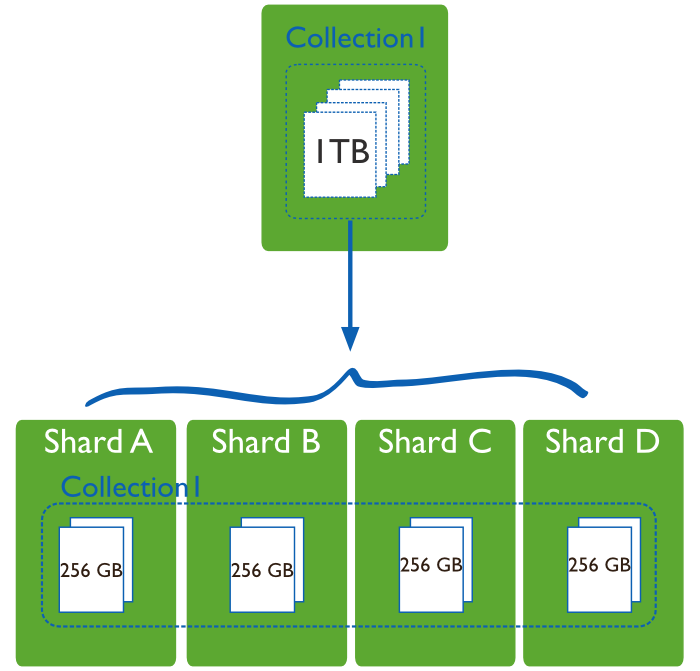

MongoDB scalability: Sharding

Sharding is a method for storing data across multiple machines.

Fire up your machines!

If you couldn't attend the Session 1 Workshop and didn't follow the slides, please clone the code from this repo and install the dependencies:

git clone https://github.com/martip-sainsburys/nodejs-project.git
cd nodejs-project
npm install
npm start

MongoDB installation

If you're in a Mac and you have homebrew installed:

brew install mongodb
...
mongod --config /usr/local/etc/mongod.conf

Otherwise find your installer

Mongoose ODM

Mongoose provides a straight-forward, schema-based solution to model your application data. It includes built-in type casting, validation, query building, business logic hooks and more, out of the box.

npm i mongoose --save
npm i body-parser --save

Mongoose ODM

Connecting to MongoDB

//app.js
'use strict';

const config      = require('./config'),
      express     = require('express'),
      app         = express(),
      bodyParser  = require('body-parser'),
      mongoose    = require('mongoose'),
      db          = mongoose.connection;


mongoose.connect('mongodb://localhost/nws');

db.on('error', (err) => console.error('Connection error: ', err));
db.once('open', () => console.log('Connected to MongoDB'));

app.use(bodyParser.urlencoded({ extended: true }));
app.use(bodyParser.json());
...

Creating a new model

//models/pr.js
const mongoose = require('mongoose'),
      Schema   = mongoose.Schema;

const PRSchema = new Schema({
  gh_id     : Number,
  url       : String,
  state     : String,
  title     : String,
  author    : Schema.Types.Mixed,
  body      : String,
  created_at: Date,
  updated_at: Date,
  closed_at : Date,
  merged_at : Date,
  marged    : Boolean,
  commits   : Number,
  links     : []
});

module.exports = mongoose.model('PR', PRSchema);

Creating our API

Let's refactor our app a little bit:

routes
├── api
│   ├── index.js
│   └── pr.js
└── webserver.js

Creating our API

Now we can simplify our app.js file

'use strict';

const config      = require('./config'),
      express     = require('express'),
      app         = express(),
      bodyParser  = require('body-parser'),
      mongoose    = require('mongoose'),
      db          = mongoose.connection,
      webserver   = require('./routes/webserver'),
      api         = require('./routes/api');


mongoose.connect('mongodb://localhost/nws');

db.on('error', (err) => console.error('Connection error: ', err));
db.once('open', () => console.log('Connected to MongoDB'));

app.use(bodyParser.urlencoded({ extended: true }));
app.use(bodyParser.json());

app.use(express.static('public'));

app.set('view engine', 'ejs');

app.use('/', webserver());
app.use('/api', api());

app.listen(config.PORT, () => {
  console.log(`Server listening on localhost:${config.PORT}`);
});

Creating our API

The routes/webserver.js holds the same code as before:

//routes/webserver.js
'use strict';

const express = require('express'),
      router  = express.Router();


module.exports = () => {

  router.get('/', (req, res, next) => {
    res.render('index', {message: 'Hello World'});
  });

  return router;
};

Creating our API

The api/index.js is going to be the hub for all our API endpoints.

//routes/api/index.js
'use strict';

const express = require('express'),
      router  = express.Router(),
      pr      = require('./pr');


module.exports = () => {

  router.use('/pr', pr());

  return router;
};

Creating our API

We want to create a RESTful CRUD API for our PRs.

Creating our API

The api/pr.js file is going to define all the methods of our API

//routes/api/pr.js
'use strict';

const express = require('express'),
      router  = express.Router(),
      PR      = require('../../models/pr');


module.exports = () => {
  router
		.get('/', (req, res, next) => {
			//Get all PRs
			PR.find((err, prs) => {
				if (err) {
					return res.status(500).json({error: err});
				}

				res.json(prs);
			});
		})
		.post('/', (req, res, next) => {
			//Create new PR
			let pr = new PR(req.body.pr);

			pr.save((err) => {
				if (err) {
					return res.status(500).json({error: err});
				}

				res.status(201).json({message: 'PR created!'});
			});
		});

  return router;
};

Exercise 1: Using Postman

Time to test it! We're going to use Postman to test our API.

Postman is a Chrome App created using web technologies and allows you to test RESTful APIs setting headers and payload easily.

Install it here

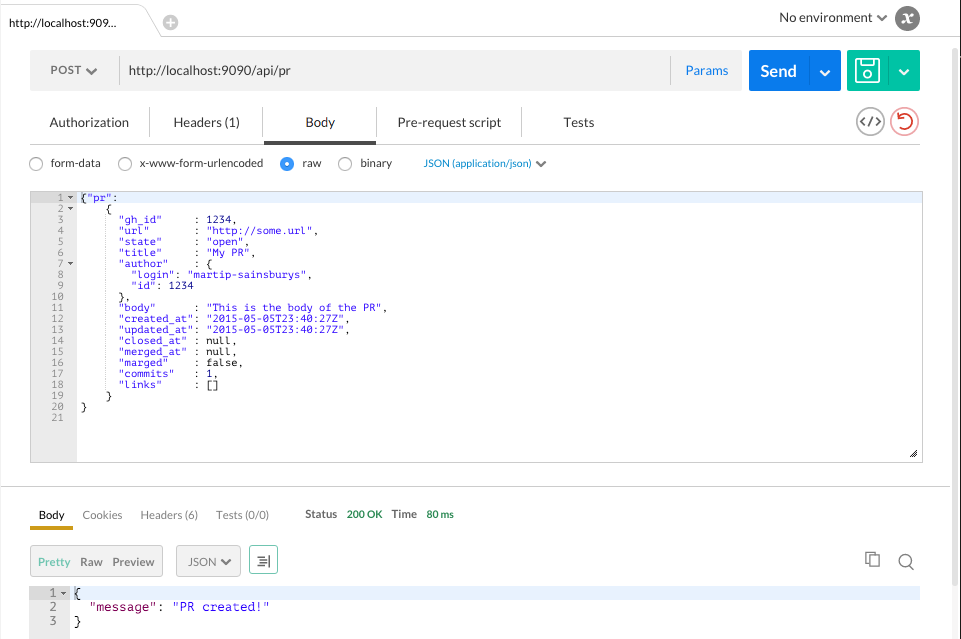

Exercise 1: Using Postman

You can send custom JSON data on the raw option. Don't forget the Content-Type: application/json header!

Exercise 1: Using Postman

Test the GET (retrieve all entries) and POST (create new entry) methods of our API using this JSON:

{"pr":
	{
		"gh_id"     : 1234,
		"url"       : "http://some.url",
		"state"     : "open",
		"title"     : "My PR",
		"author"    : {
			"login": "martip-sainsburys",
			"id": 1234
		},
		"body"      : "This is the body of the PR",
		"created_at": "2015-05-05T23:40:27Z",
		"updated_at": "2015-05-05T23:40:27Z",
		"closed_at" : null,
		"merged_at" : null,
		"marged"    : false,
		"commits"   : 1,
		"links"     : []
	}
}

Exercise 2: Complete the API

We have 2 of the 5 methods we want, create the remaining:

//hint: you can get url parameters like this
.get('/:pr_id', (req, res, next) => {
	let pr_id = req.params.pr_id;
...

What we learned today

• NoSQL: What is it, what purpose does it serve.
• MongoDB: What it is, how it works.
• Mongoose: How to create a model and use it.
• API Creation: Define api routes and methods for a RESTful API.
• Postman: How to use Postman to test your APIs

Thank you!

Check out the repo https://github.com/martip-sainsburys/nodejs-workshop.
What else do you want to learn?
